How Long Does a Hydraulic Cylinder Last?

by | Jul 23, 2026 | single acting cylinder

Hydraulic cylinder service life is one of the most variable performance characteristics across different applications and maintenance regimes. The same cylinder design — same bore, same seal compound, same steel — can last 25 years in one installation and require overhaul within 3 years in another. The difference is almost entirely in the operating conditions and maintenance quality rather than in the cylinder itself. Understanding what determines hydraulic cylinder life allows operators to set realistic expectations and take the actions that push actual service life toward the upper end of the possible range.

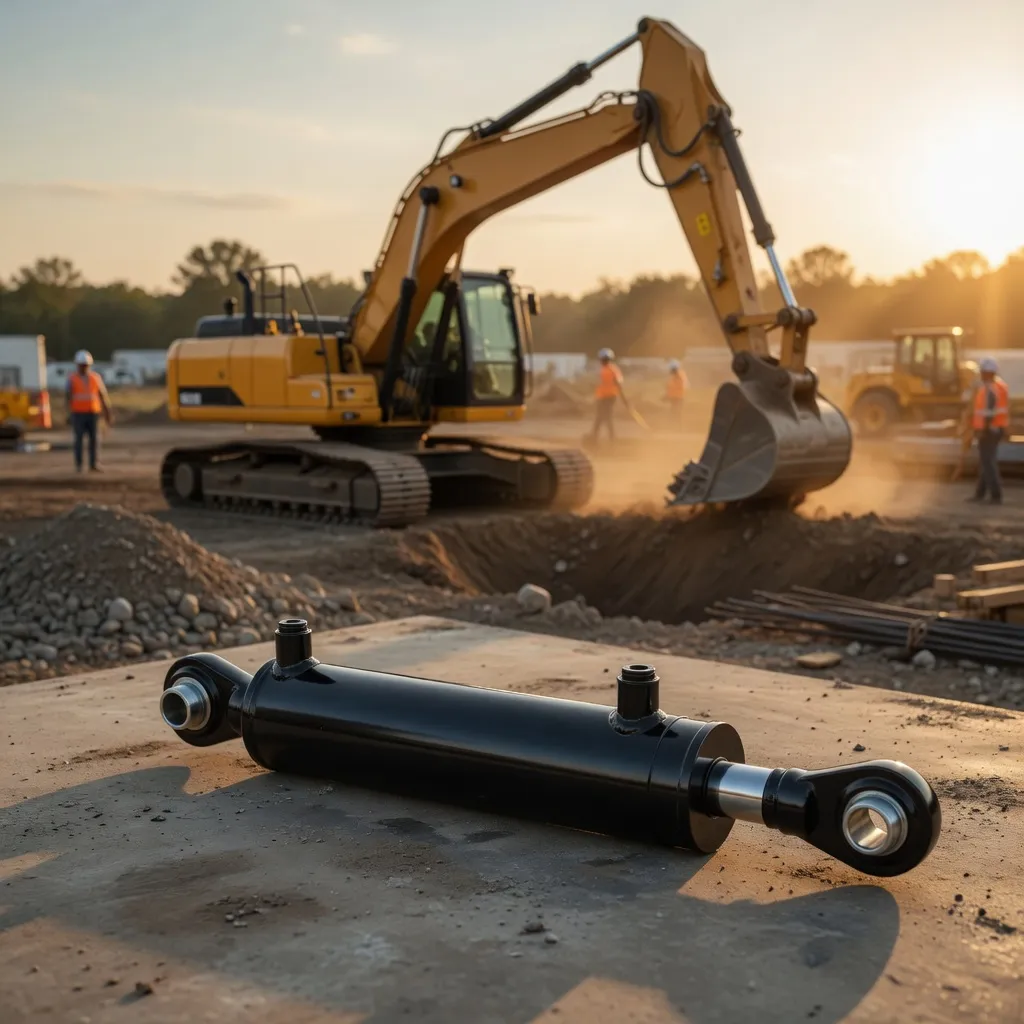

High quality reliable hydraulic cylinder long service life specification guide

The Five Factors That Determine Hydraulic Cylinder Life

️

1. Oil Cleanliness

The single highest-impact factor. At ISO 16/14/11, seals and bore surfaces last their full design life. At ISO 20/18/15 — common in neglected field machinery — seal life is 50–70% shorter. Oil cleanliness is a management decision, not a luck-of-the-draw outcome.

️

2. Seal Compound Match

Correct seal compound for the operating temperature range prevents the premature hardening (cold) or extrusion (hot) that ends seal life early. PU for outdoor machinery to -30°C; FKM for high-temperature to 200°C; NBR for indoor climate-controlled only.

3. Rod Surface Protection

Chrome rod surfaces protected from corrosion and impact damage provide the smooth, hard surface that seals rely on. Retract rods in storage. Inspect and replace damaged wiper seals before they allow corrosion ingress.

4. Mounting Alignment

Side load — force perpendicular to the rod axis — concentrates seal wear at one point and reduces seal life disproportionately. Correct mounting alignment and spherical rod end bearings where needed eliminate this cause.

⚙️

5. Duty Cycle

Cylinders in high-cycle applications accumulate seal compression cycles and rod surface contact cycles faster than low-cycle applications. At 200 cycles per hour, a cylinder accumulates 1.6 million cycles per year — requiring seal replacement well before 5,000 hours. At 5 cycles per hour, the same seal may last 5,000+ hours.

Expected Hydraulic Cylinder Life by Application

Application Typical First Overhaul (hours) Full Asset Life with Rebuilds Key Life-Limiting Factor
Static industrial press — clean environment 10,000–15,000 40,000–60,000+ hrs Bore tolerance from repeated honing
Agricultural machinery — field duty 5,000–10,000 20,000–40,000 hrs Rod corrosion and crop debris contamination
Construction machinery — outdoor 3,000–7,000 15,000–25,000 hrs Abrasive dust contamination and side load
Dump truck tipping cylinder 5,000–10,000 20,000–35,000 hrs Wiper seal wear from road grit
Marine and offshore — salt exposure 2,000–5,000 10,000–20,000 hrs Rod corrosion despite chrome plating
Log splitter — residential use 15,000–25,000+ hrs Service life of the machine Low cycle rate; bark debris wiper wear

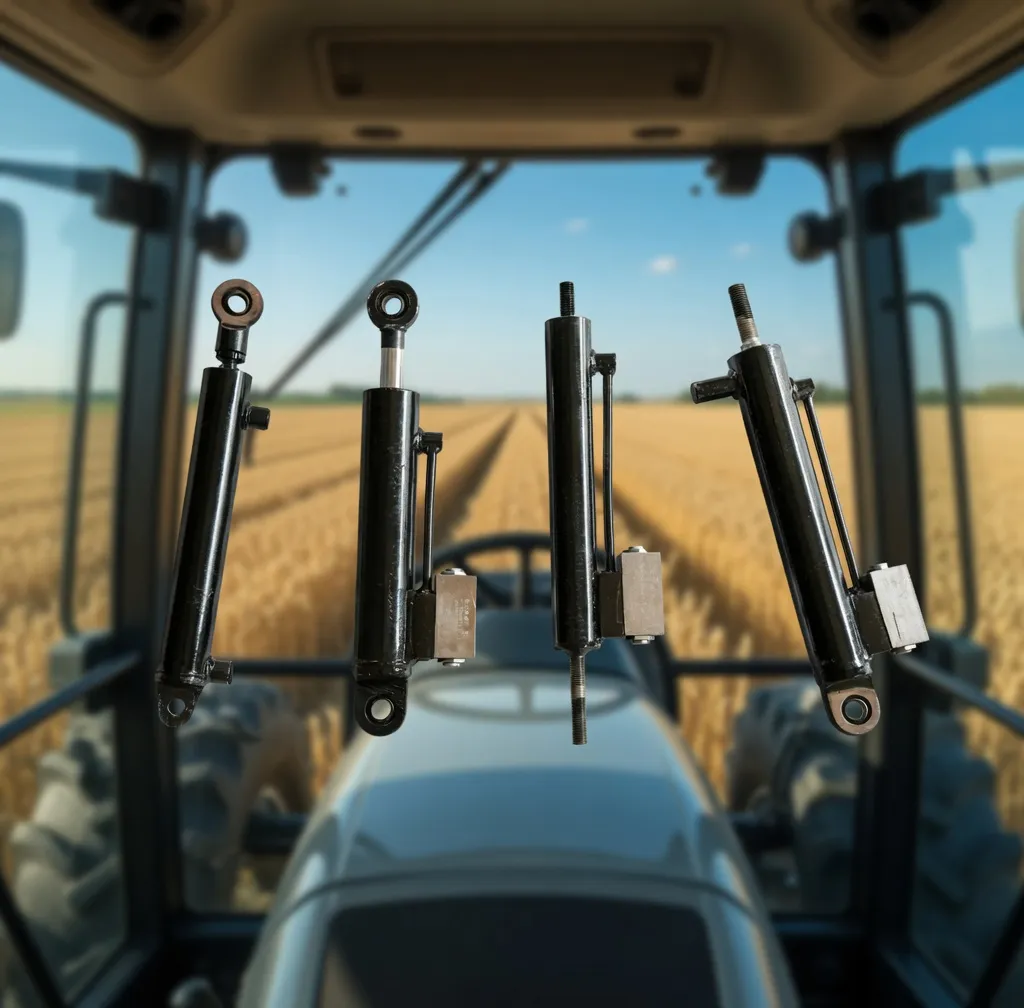

HSG hydraulic cylinder plant protection machinery long service life maintenance

Maximising Hydraulic Cylinder Life: The Practical Checklist

Five actions, applied consistently, push actual hydraulic cylinder life to the upper end of the expected range for any application: (1) maintain oil at ISO 16/14/11 through annual sampling and condition-based filter replacement; (2) inspect wiper seals at every service interval — 250–500 hours for mobile machinery — and replace at first sign of cracking or deformation; (3) retract all rods fully before storage and apply corrosion inhibitor to any exposed chrome; (4) re-torque mounting fasteners annually and check pin-to-bushing clearance for side-load indicators; (5) replace the complete seal kit proactively at 2,000–3,000 hours rather than waiting for visible leakage. For specific seal kit supply, rebuild guidance, or long-life cylinder specification for demanding applications, contact Ever-Power with your cylinder model and operating hours.

Request a Free Specification Review

Send your application details to [email protected] or call +86-571-88220653. Our engineers respond within 24 hours.

Frequently Asked Questions

1. How long does a hydraulic cylinder last?+
A well-maintained hydraulic cylinder in standard industrial duty lasts 15,000–25,000 operating hours, or 15–25 years in continuous service. In agricultural field duty with regular maintenance, 10,000–15,000 hours is typical. In harsh construction environments with minimal maintenance, 3,000–8,000 hours before major overhaul. The key life-limiting components are the barrel bore (constrained by honing tolerance) and the piston rod (constrained by re-chroming feasibility). Seals are maintenance consumables whose replacement does not indicate cylinder end-of-life.
2. What determines how long a hydraulic cylinder lasts?+
Five factors primarily determine hydraulic cylinder service life: oil cleanliness (the most important — contaminated oil at ISO 20/18/15 reduces seal and bore life by 50–70% versus clean oil at ISO 16/14/11); seal compound selection (matching compound to operating temperature prevents premature hardening or extrusion); rod surface protection (preventing corrosion through correct storage and wiper seal maintenance); mounting alignment (side load accelerates rod seal and bushing wear disproportionately); and duty cycle (high-cycle applications accumulate fatigue loading that low-cycle applications do not).
3. How long should a hydraulic cylinder last on a tractor?+
A tractor hydraulic cylinder in agricultural use typically lasts 10,000–20,000 hours with regular maintenance — equivalent to 20–40 years of typical farm use at 500 hours per year. The most common life-limiting factors for agricultural hydraulic cylinders are rod corrosion from chemical exposure (pesticides, fertilisers, road salt in winter), wiper seal damage from crop debris abrasion, and oil contamination from dusty field conditions. Cylinders on machinery that are properly cleaned, stored with rods retracted, and serviced with wiper seal replacement every 1,000–2,000 hours routinely achieve the upper end of this range.
4. When should a hydraulic cylinder be rebuilt vs replaced?+
Rebuild when: the barrel bore is within honing tolerance, the rod can be re-chromed or polished, and end caps are structurally sound — typically 15,000–25,000 hours for well-maintained cylinders. Replace when: barrel bore scoring cannot be honed without oversizing, the rod is bent beyond straightening, or barrel welds have structural cracks. Most hydraulic cylinders can be rebuilt 2–3 times before barrel or rod condition mandates replacement, meaning the total asset life (original + rebuilds) can extend to 50,000+ hours in good operating conditions.
5. Does a larger bore hydraulic cylinder last longer than a smaller bore?+
Not necessarily — the life of a hydraulic cylinder depends on the ratio of operating conditions to design margins, not absolute size. A large bore cylinder operating at 80% of its pressure rating in contaminated oil will fail sooner than a small bore cylinder operating at 40% of its rating in clean oil. That said, a cylinder with more generous bore-to-rod ratio does have more honing material available before replacement is needed, and thicker barrel walls provide more resistance to fatigue. Correct specification for the application is more important than selecting a larger size as a durability strategy.
