Why Does a Hydraulic Cylinder Lose Pressure?

by | Jul 23, 2026 | single acting cylinder

A hydraulic cylinder that loses pressure — allowing a raised load to drop gradually, a clamped workpiece to slip, or a pressed component to spring back — has a bypass path somewhere between the pump and the load. Finding that path requires distinguishing between pressure loss inside the cylinder itself and pressure loss in the hydraulic circuit that supplies it. These two categories have different symptoms, different diagnostic tests, and different fixes, and confusing them leads to replacing components that are not causing the problem.

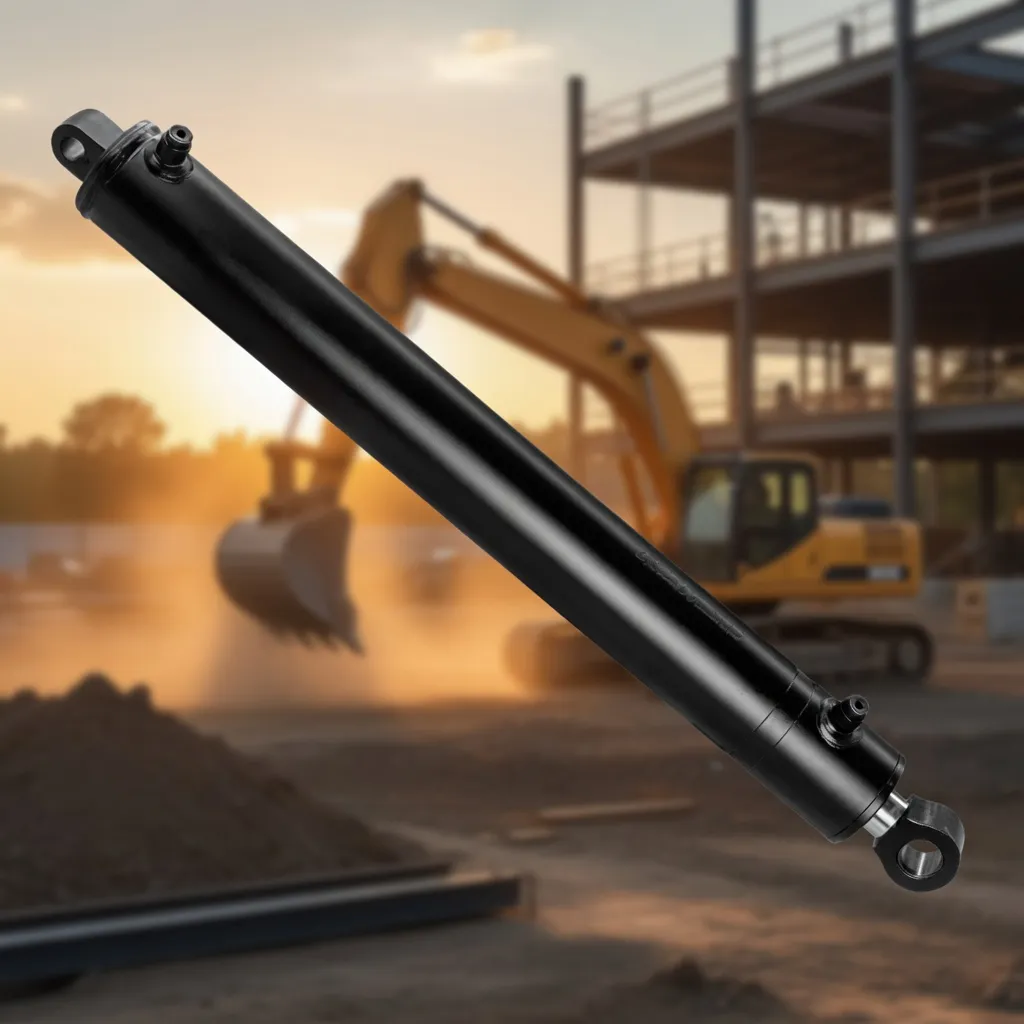

Hydraulic cylinder grain tank lifting pressure loss diagnosis under load

The Cap-and-Observe Test: Separating Internal from Circuit Pressure Loss

This is the single most important diagnostic test for hydraulic cylinder pressure loss, and it requires no instruments beyond a watch and a ruler. With the cylinder loaded and the system shut down, disconnect both hydraulic lines and cap the cylinder ports. Mark the rod position at the gland face. Wait 10 minutes under the normal working load. Measure rod movement against the mark.

❌

Rod moves after capping — Internal bypass

The pressure loss is inside the cylinder. The piston seal is bypassing under the load pressure differential. The cylinder must be rebuilt with a new piston seal kit. Bore condition should be checked — a scored bore accelerates piston seal bypass.

✅

Rod holds after capping — Circuit-side loss

The cylinder is holding correctly in isolation. The pressure loss is in the circuit — directional valve spool leakage, pilot-operated check valve seat leakage, or external port fitting leakage. No cylinder repair is needed; investigate the circuit components.

Internal Piston Seal Bypass: Diagnosis and Fix

Piston seal bypass is confirmed when the cylinder drifts after hydraulic lines are disconnected and capped. The rate of drift indicates the severity of bypass. At 50% of rated load, an acceptable drift rate for standard single acting cylinders is less than 0.5 mm per minute. Rates above 2 mm per minute represent significant bypass requiring prompt seal replacement.

Before ordering a piston seal kit, inspect the bore for scoring. A piston seal that has failed due to abrasive contamination typically leaves scoring marks on the bore surface. Fitting a new piston seal in a scored bore produces immediate re-failure. Inspect the bore with a bright light for axial scratches. If scoring is found, the bore must be honed before the new seal is installed.

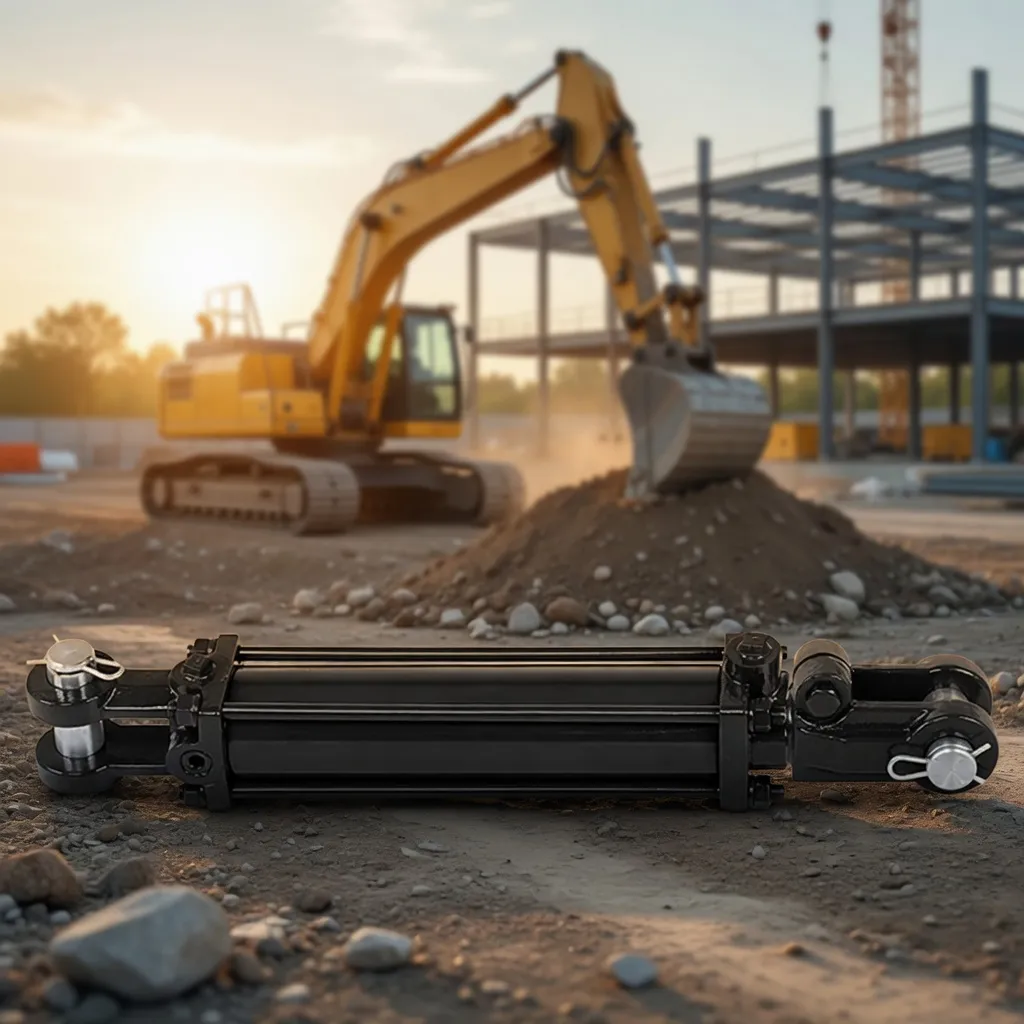

Double acting hydraulic cylinder showing piston seal bypass pressure loss

Circuit-Side Pressure Loss: What to Check

Circuit Component How It Causes Pressure Loss Diagnostic Test Fix
Directional valve spool Worn spool leaks cap-end port to tank in neutral Measure drift with valve isolated; compare to spec leakage Replace valve cartridge
Pilot-operated check valve Contaminated seat does not fully close Remove and inspect valve seat for debris or damage Clean or replace POCV
Port fitting O-ring Leaks externally — visible oil at fitting Visual inspection after cleaning and pressurising Re-torque or replace O-ring and fitting
Counterbalance valve Cracking pressure too low — opens under load Measure cracking pressure; compare to specification Replace or adjust counterbalance valve
System relief valve Failed partially open — limits maximum holding pressure Measure system pressure at maximum load; compare to relief setting Replace or adjust relief valve

Systematic pressure loss diagnosis using the cap-and-observe test first eliminates either the cylinder or the circuit as the source — then targeted component testing identifies the specific fault. This approach avoids the common and expensive error of rebuilding a cylinder that is sealing correctly while a worn valve continues to cause drift. For diagnosis support or to source piston seal kits for specific cylinder models, contact Ever-Power with your cylinder dimensions and observed drift rate.

Request a Free Specification Review

Send your application details to [email protected] or call +86-571-88220653. Our engineers respond within 24 hours.

Frequently Asked Questions

1. Why does a hydraulic cylinder lose pressure?+
A hydraulic cylinder loses pressure due to internal leakage past the piston seal (most common), external leakage through a failed rod seal or end cap O-ring, leakage past a directional control valve spool in the neutral position, or a failed load-holding valve that is not fully seating. The pressure loss appears as cylinder drift — the rod moves slowly in the loaded direction without a command signal. Identify whether the pressure loss is internal (cylinder-side) or circuit-side by capping the hydraulic lines and observing whether drift continues.
2. How do I find where a hydraulic cylinder is losing pressure?+
Cap the hydraulic lines at the cylinder ports with the cylinder loaded. If the cylinder still drifts, the pressure loss is internal — the piston seal is bypassing. If the cylinder holds position after capping, the pressure loss is in the circuit: check the directional control valve for spool leakage in neutral, check any pilot-operated check valve for seat leakage, and check for external leaks at port fittings. This cap-and-observe test separates cylinder-internal from circuit-external pressure loss without any disassembly.
3. Can a worn piston seal cause pressure loss in a hydraulic cylinder?+
Yes — a worn or damaged piston seal is the most common cause of hydraulic cylinder pressure loss. The piston seal separates the cap-end and rod-end chambers. When it bypasses, oil flows from the high-pressure side to the low-pressure side under the load pressure differential, causing the cylinder to drift in the loaded direction. The bypass rate determines the drift speed — a badly worn piston seal may allow drift of 5–10 mm per minute under a moderate load.
4. Does a leaking directional control valve cause cylinder pressure loss?+
Yes. Every directional control valve has a specified internal leakage rate in the neutral (centre) position. As the spool-to-bore clearance increases with wear, internal leakage rises. This leakage connects the cap-end port to the tank return, allowing the load to push oil out of the cap end and retract the cylinder gradually. Replace the valve spool or cartridge when drift is confirmed to originate in the circuit (by the cap-and-observe test) rather than the cylinder.
5. Why does my hydraulic cylinder lose pressure only under high load?+
Pressure loss that only appears under high load but not under light load indicates a component that is sealing adequately at low pressure differential but bypassing under higher differential. Piston seals that have partially worn, load-holding valve seats that have minor contamination, and directional valve spools that have moderate wear all show load-dependent leakage. The higher the pressure differential across the compromised seal or seat, the higher the bypass rate — which is why the cylinder holds under light loads but drifts under heavy loads.
