Custom Hydraulic Cylinder for Forklift Steering

Custom Hydraulic Cylinder for Forklift Steering

Custom-engineered forklift steering cylinder with precision bore and dual-port configuration. Hard chrome rod, composite seal package, welded body. OEM-grade replacement for Linde, Still, and BT Rolatruc steering cylinder assemblies.

Categories: ,

Description

Forklift Steering Cylinder — Custom OEM Engineering

This steering hydraulic cylinder is produced to customer-specific dimensional and performance requirements — the defining feature that separates it from our standard catalogue steering cylinder. Machine designers and maintenance teams that need an exact dimensional match to a Linde, Still, BT, or other specialist forklift brand’s steering cylinder, where standard catalogue items do not match, use this engineering-to-order service. The cylinder is a double-acting hydraulic cylinder with hard chrome rod, welded body construction, and a composite seal package rated for the combined side-load, torsional, and axial forces present in rear-steer forklift geometry.

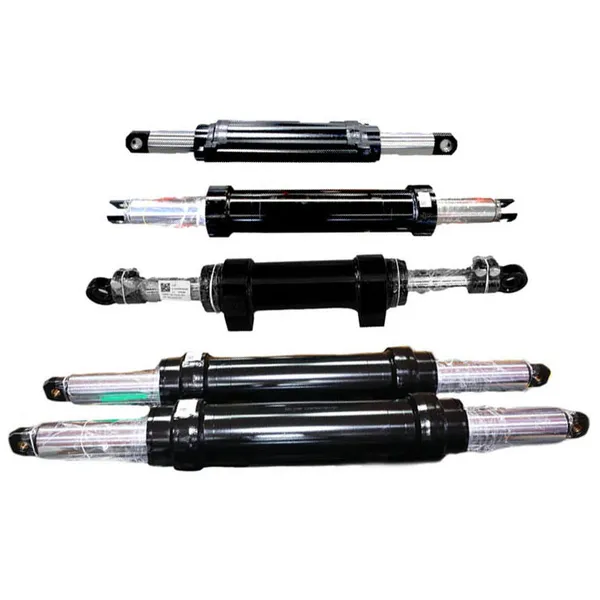

Custom forklift steering hydraulic cylinder

Engineering-to-Order Process

1
Submit Dimensional Drawing

Provide a dimensional drawing or the OEM part number and forklift model. Alternatively, send a sample cylinder for measurement. Include force requirement if known.

2
Engineering Review

Our team reviews the requirement, confirms feasibility, and returns a proposed specification drawing within 3–5 working days for customer approval.

3
First Article

First-article samples produced and dispatched for customer testing within 15–25 working days of drawing approval. Dimensional and pressure test report included.

4
Series Supply

Following customer approval of first-article, series production commences. Annual blanket orders and consignment stock arrangements available.

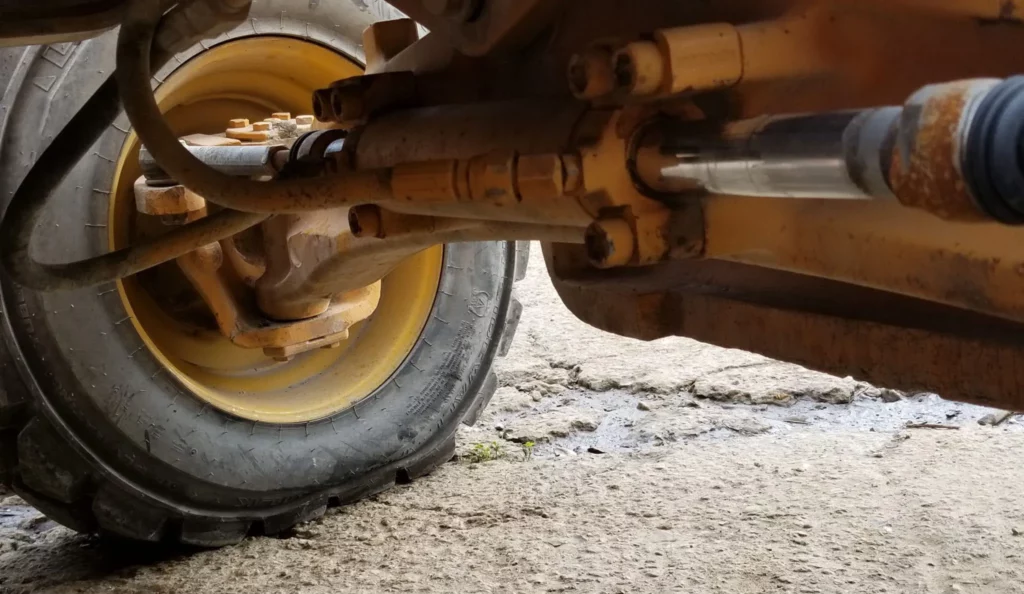

Custom steering cylinder dimensional verification

Technical Capabilities

Parameter Value Notes
Bore Range 25mm to 200mm Custom single-piece or welded body
Stroke Range 50mm to 2,000mm Multiple-stage available above 1,200mm
Rod Diameter To match bore and load Column buckling calculation provided
Mounting Styles Clevis, eye, flange, foot, trunnion Any standard or custom mounting
Port Configurations SAE, BSPP, metric Both-end, same-end, or body-port
Surface Treatment Enamel, epoxy, zinc plate, nickel plate Match OEM finish specification
Cushions Fixed, adjustable, or none Specify cushion requirement per end

Why Customers Choose Custom Engineering

🎯
Exact OEM Match

Dimensional match to the OEM specification eliminates the risk of fitment issues that can occur with ‘close enough’ catalogue substitutes.

📋
Full Documentation

First-article dimensional report, material certificate, and pressure test certificate provided for customer qualification records.

⚡
Competitive Lead Time

Custom units available within 15–25 days of drawing approval — shorter than many OEM spare part delivery windows.

🔁
Ongoing Supply

Qualified as a long-term supply source with part number and drawing archive retained for repeat orders without re-qualification.

To request pricing for the custom steering cylinder, custom specifications, or an OEM supply assessment, contact Hangzhou Ever-Power Hydraulic Cylinder Co., Ltd. at +86-571-88220653 or [email protected]. Our address is Shenhua Road, Hangzhou. Use the contact form for a response within one business day.

Frequently Asked Questions

1. What information do I need to provide to start a custom cylinder project? +
At minimum: a dimensional drawing (2D or 3D), or a sample cylinder plus a list of critical dimensions, the working pressure and maximum test pressure, the hydraulic fluid type, and the required quantity for first article and expected annual volume. Force and speed requirements are helpful but can be calculated from the dimensional data if not available.
2. How long does it take to get first-article samples for a new custom cylinder? +
Typically 15–25 working days from drawing approval. Complex designs with special features (high-pressure cushions, position sensing, unusual mounting) may require 25–35 days. Contact us at the start of the project to confirm lead time for your specific design.
3. Can you match a specific surface finish or colour used on OEM cylinders? +
Yes. We can match paint colour by RAL or Pantone reference, surface treatment type (enamel, epoxy, two-pack PU, powder coat), and gloss level. For zinc or nickel plating, specify the required thickness. Provide the OEM’s finish specification sheet or a sample part for visual matching.
4. What documentation do you provide with a custom cylinder? +
Standard documentation includes: dimensional inspection report (first-article), material certificate for barrel, rod, and end components, pressure test certificate per batch, and packing list with individual cylinder identification. Additional documents (PPAP, FMEA, control plan, ISIR) available for OEM automotive-sector supply programs.
5. Do you hold stock of custom cylinders for fast replenishment? +
Consignment stock arrangements are available for qualified OEM supply accounts. We hold an agreed quantity of finished cylinders at our Hangzhou facility for next-day shipment. Stock levels are reviewed quarterly and replenished to agreed minimum and maximum levels.
