Description

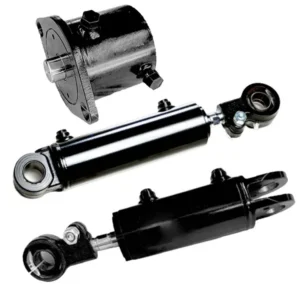

HCYY11112001 Forklift Tilt Cylinder — Mast Angle Control
The HCYY11112001 controls the forward and backward tilt of the forklift mast. As a double-acting hydraulic cylinder, it pushes the mast forward when entering a load and pulls it back to carry position under full rated load. This cylinder operates in one of the most mechanically demanding positions on the forklift — it must hold the mast and load at a precise angle when the control valve is in neutral, under vibration and impact loads from the operating environment, without allowing any angular drift. The HCYY11112001’s static hold performance is verified through a pressure-hold test in both extension and retraction directions at 1.5× rated working pressure before shipment.
Specifications
| Parameter | Value | Notes |
|---|---|---|
| Model | HCYY11112001 | Forklift tilt cylinder |
| Type | Double-acting | Powered extend and retract |
| Application | Mast tilt — forward and backward | Counterbalance forklift |
| Barrel | Cold-drawn alloy steel, honed bore | Ra 0.4–0.8 µm bore finish |
| Rod | Hard chrome, ground h6 | Abrasion and corrosion resistant |
| Static Hold | Tested both directions at 1.5× working pressure | Zero drift requirement |
| Series | HCYY11112000 forklift cylinder series | Lift / Tilt / Steering set available |
Tilt Function in Forklift Operation
Forward Tilt
The operator tilts the mast forward to lower the forks toward the load and to increase fork insertion angle for ground-level picking. At maximum forward tilt with a full load, the tilt cylinder extension force must overcome the rearward moment of the load and mast — the cylinder is at its maximum force demand in this position.
Backward Tilt
Mast backward tilt (carrying position) is achieved by cylinder retraction. The cylinder pulls the mast back against the weight and inertia of the load, tilting it to the stable carrying position that raises the load’s center of gravity slightly above the front axle line. The HCYY11112001 is sized to provide adequate retraction force for the rated load at the design system pressure.
Performance Highlights
Both extend and retract directions pressure-hold tested — eliminates mast angle drift in either direction.
Ra 0.4–0.8 µm bore finish extends piston seal service life and maintains consistent static hold performance.
Part of the HCYY11112000 series — coordinate with HCYY11112000 (lift) and HCYY11112002 (steering) for a complete cylinder set.
Material certificate, dimensional report, and pressure test certificate available per batch.
To request pricing for the HCYY11112001 tilt cylinder, custom specifications, or an OEM supply assessment, contact Hangzhou Ever-Power Hydraulic Cylinder Co., Ltd. at +86-571-88220653 or [email protected]. Our address is Shenhua Road, Hangzhou. Use the contact form for a response within one business day.
