When Should a Hydraulic Cylinder Be Replaced?

by | Jul 15, 2026 | single acting cylinder

The decision between hydraulic cylinder replacement and repair is an economic calculation — but it requires knowing what is actually wrong with the cylinder before running the numbers. A cylinder leaking from a rod seal is almost never a replacement candidate. A cylinder with a cracked barrel weld is almost never a repair candidate. Between these two clear cases lies a range of conditions where the correct decision depends on the extent of bore wear, rod condition, and the cost of the cylinder relative to repair options. This guide provides a systematic framework for making the right call.

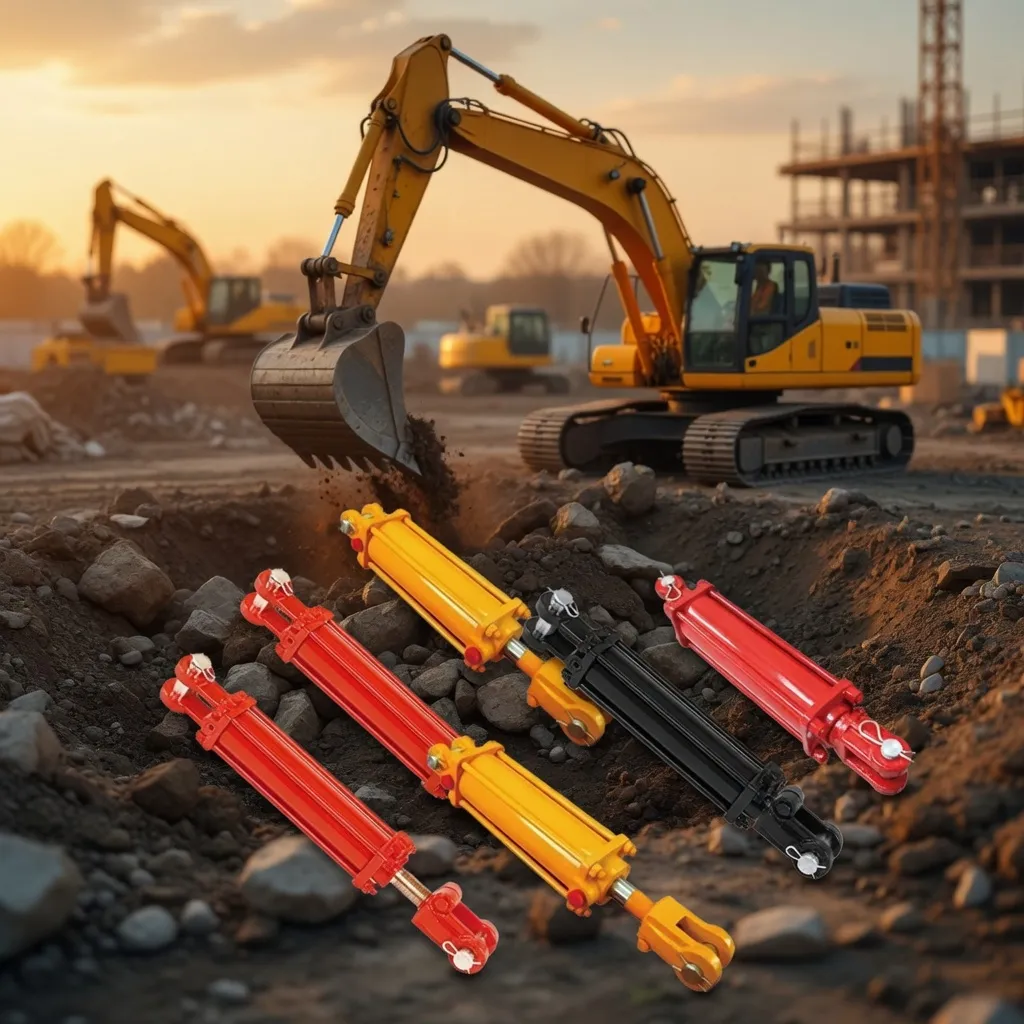

Tie rod hydraulic cylinder assessment for repair versus replacement decision

The Hydraulic Cylinder Assessment: What to Inspect

A systematic hydraulic cylinder assessment covers five components. Each component has a set of accept/reject criteria that determines whether it is repairable, replaceable, or serviceable as-is.

1
Barrel bore inspection

Measure bore diameter at three points along the length and at 0° and 90° to detect taper and ovality. Compare to the original bore specification. Check for scoring with a fingernail and a bright light. Minor scoring (< 0.1 mm) is honable; deep scoring (> 0.2 mm) may require replacement. Honing enlarges the bore — confirm that the resulting bore is within the tolerance range of the next available piston seal size.

2
Piston rod inspection

Inspect for scoring, pitting, chrome loss, and bending. Scoring < 0.05 mm: polish. Scoring 0.05–0.15 mm: re-chrome. Scoring > 0.15 mm or extensive pitting: replace rod. Check straightness with a dial indicator — more than 0.3 mm runout over the rod length indicates permanent bend requiring rod replacement.

3
End cap and gland inspection

Check thread condition at the gland and barrel thread interface. Stripped or crossed threads are not repairable — the component must be replaced. Check the end cap bore for the rod bearing for wear — excessive clearance (> 0.3 mm) allows rod side-load that destroys seals.

4
Barrel external inspection

Inspect barrel welds for cracking — particularly at the barrel-to-end-cap weld on welded cylinders. Any crack in a pressure-containing weld is a replacement indicator. Check the barrel wall for corrosion-induced thinning in the external surface — significant wall loss reduces the burst pressure margin.

5
Mounting hardware inspection

Check pin-eye bores, clevis forks, and flange bolt holes for wear, cracking, or deformation. Minor wear in pin-eye bores is repairable by bushing replacement. Cracking in mounting hardware is a replacement indicator.

Repair vs Replace Decision Matrix

Condition Found Repair Cost Estimate Decision
Rod seal only leaking — rod surface good Seal kit only (£15–£80) Always repair
Rod seal leaking — rod needs polish Seal kit + 1 hour polish Always repair
Rod needs re-chroming — bore good Seal kit + re-chrome (£150–£500) Repair if < 50% new cylinder cost
Bore needs honing — rod good Seal kit + honing (£50–£200) Repair if < 50% new cylinder cost
Rod replacement + bore honing needed High — compare to new cylinder price Compare and decide
Barrel weld cracked Not safely repairable Replace cylinder
Barrel bore > 0.3 mm oversize from honing Custom seals or new barrel Replace cylinder
Multiple major components failed simultaneously Total repair cost likely exceeds new Replace cylinder
Hydraulic cylinder grain tank lifting repair assessment end of service life

Lead Time Considerations in the Replacement Decision

In some situations, the replacement decision is driven not by economics but by time. If a critical machine is down and the cylinder repair lead time (including shipping to a re-chroming facility, waiting in queue, and return shipping) exceeds the lead time for a new cylinder — which can be as short as 7–15 days from stock for standard sizes — replacement may be the correct operational decision even when repair would be economically justified.

Ever-Power maintains stock of standard bore cylinders in the most common sizes for rapid despatch. For non-standard or custom replacement cylinders, prototype manufacturing lead time is 15–25 working days from drawing approval. Contact the team with the cylinder dimensions to confirm availability from stock or the fastest available lead time for a custom replacement.

Request a Free Specification Review

Send your application details to [email protected] or call +86-571-88220653. Our engineers respond within 24 hours.

Frequently Asked Questions

1. When should a hydraulic cylinder be replaced?+
A hydraulic cylinder should be replaced rather than repaired when: the barrel has structural damage — cracked welds, through-wall corrosion, or bore scoring deeper than 0.2 mm that cannot be honed without oversizing; the piston rod is bent beyond straightening; the rod has corrosion pitting or scoring deeper than 0.15 mm across a significant length that re-chroming cannot economically correct; or the cylinder is a non-standard size where a new unit costs less than the time and cost of specialist repair.
2. How do I know when a hydraulic cylinder is worn out?+
A hydraulic cylinder is effectively worn out when it can no longer be economically repaired to hold its rated working pressure without leaking. Specific indicators: bore diameter has grown beyond the maximum tolerance from honing (typically more than 0.3 mm oversize); rod diameter has been reduced below minimum by repeated re-chroming; end cap threads are stripped or cracked; or the barrel has stress corrosion cracking that a qualified engineer confirms is beyond safe repair. Functional wear — seal leakage — is almost always repairable and does not by itself indicate the cylinder is worn out.
3. Is it worth repairing or replacing a hydraulic cylinder?+
Repair is worth it when: the barrel bore is within honing tolerance, the rod can be re-chromed or polished, the end caps and mounting hardware are intact, and the repair cost (seal kit + any rod or bore work) is less than 50% of the new cylinder cost. Replace when: repair cost exceeds 50–60% of new cylinder cost, the barrel has structural damage, lead time for repair exceeds lead time for a new unit, or the cylinder is obsolete and a direct replacement is no longer available.
4. What is the average life of a hydraulic cylinder?+
A well-maintained hydraulic cylinder in standard industrial duty lasts 15,000–25,000 operating hours or 15–25 years before the barrel or rod is beyond repair. In harsh agricultural or construction duty with less rigorous maintenance, 5,000–10,000 hours is more typical. The key life-limiting components are the rod (chrome life) and the barrel bore (honing tolerance). Seals are maintenance consumables — regular seal replacement does not indicate cylinder end-of-life.
5. When is it cheaper to replace a hydraulic cylinder than repair it?+
Replacement is cheaper than repair when: (1) the barrel requires re-boring to a non-standard diameter that requires custom piston seals; (2) the rod requires full re-manufacturing rather than re-chroming; (3) the cylinder is a small standard bore size where a new unit costs under £150 and repair labour exceeds that; (4) multiple major components (barrel, rod, and end caps) all require work simultaneously; or (5) the cylinder is a custom non-standard size where parts are not available and the manufacturer no longer supports the specification.
